  • FUNCTION

KMD 700R

01

Super Sound Energy

The purpose of Steel Enclosure exposed for the first time at Seoul Hi-Fi Audio Show in 1999 is to realize zero loss sound energy during transform the electric signal to the audio signal for the audiophile.

KMD is faithful to make Zero Sound Energy Loss when the electric signal is converted into the audio signal.

02

Super Sound Orchestral Arrangement

A large number of recording microphone arrangements at the recording sites covert the audio signal of a sound source of various genres into the electric signal.

KMD desires to express the site where the sound source is occurred by Orchestral Arrangement Technology of Speakers of each range used to convert electrical signalized sound source into the audio signal. (KMD's Patent)

  • KMD 700R-sub-01
  • KMD 700R-sub-02
  • KMD 700R-sub-02
KMD 700R
KMD 700R

03

Super Sound Fidelity

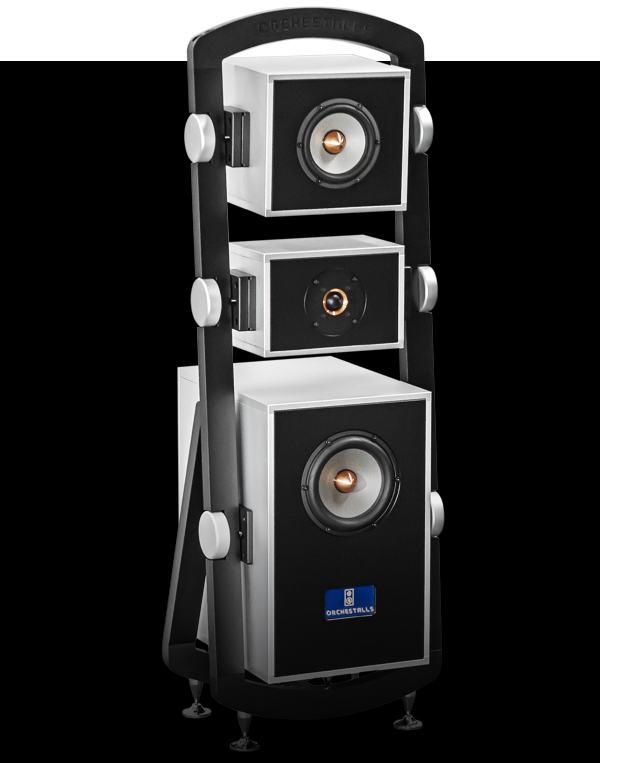

OCS 600CE was specially designed aimed for multi-channel audio playback.

KMD speakers of each range (low, middle & high) play the sound source as the audio signal, using individual enclosures instead of a tall-boy setup to express the location where the three-dimensional sound source has occurred

  • KMD 700R

04

Super Universal Sound Origin and Angle.

The directional angle of the sound source at the place where the sound source is occurred, can be adjusted.

KMD has a technology in Universal Revolving making 180 degrees on the front side of speakers in case of playing the sound source. It can make the playback controlled in the way of directional angle. (KMD's Patent)

KMD 700R
KMD 700R

  • DRIVE UNITS

  • 25mm

    180° FREE REVOLVING DIRECTIONAL TWEETER

    (SEAS T25CF002, “MILLENNIUM”)

  • 146mm

    180° FREE REVOLVING DIRECTIONAL MID-RANGE

    (SEAS W16NX001)

  • 176mm

    180° FREE REVOLVING DIRECTIONAL WOOFER

    (SEAS W19NX001)

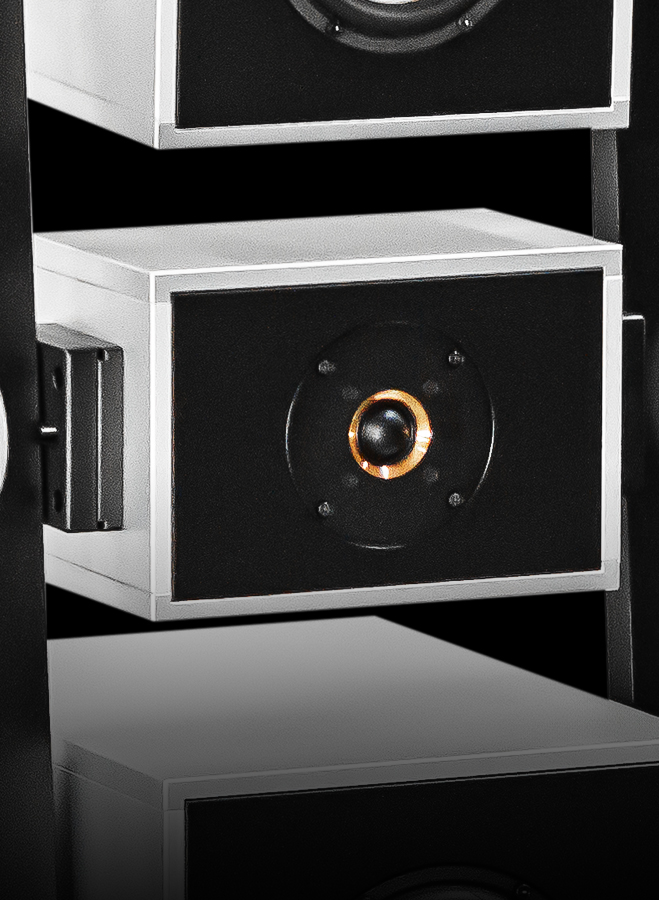

  • 180° FREE REVOLVING DIRECTIONAL TWEETER

    (SEAS T25CF002, “MILLENNIUM”)(25mm)

    25mm soft dome tweeter with a novel Neodymium based magnet system.

    Directional Speaker Encloser Sensitivity (2.83V,1m) 89dB, Recommended Frequency Range : 2000~25000Hz

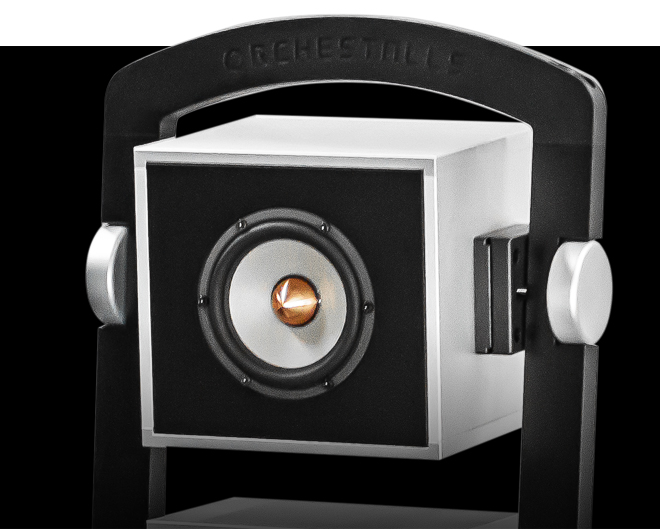

  • 180° FREE REVOLVING DIRECTIONAL MID-RANGE

    (SEAS W16NX001)(146mm)

    Precision cast, machined and surface treated magnesium cone FEA optimized magnet system.

    Directional Speaker Encloser Sensitivity (2.83V, 1m) 85dB, Recommended Frequency Range : 45~2500Hz

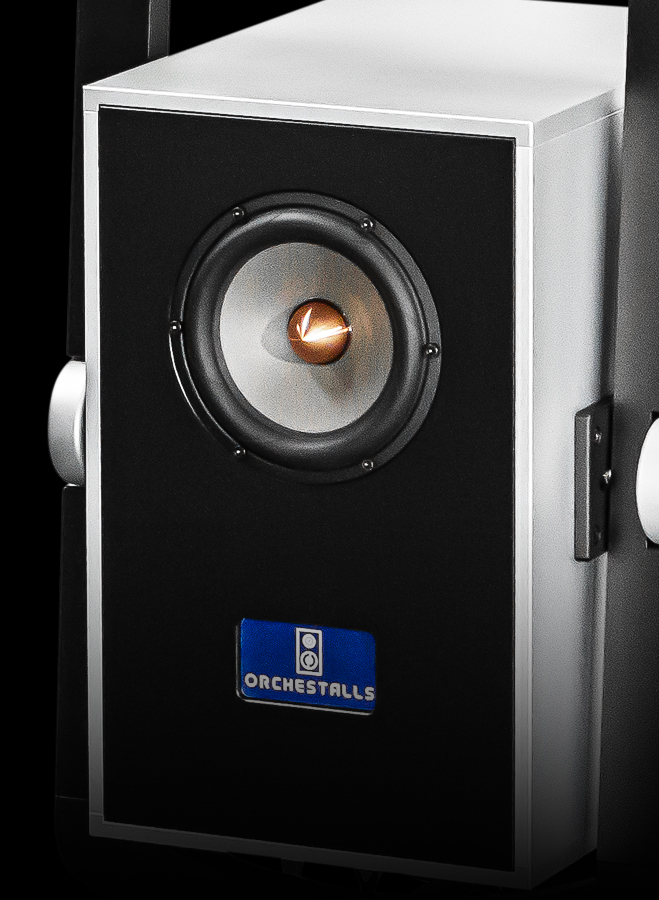

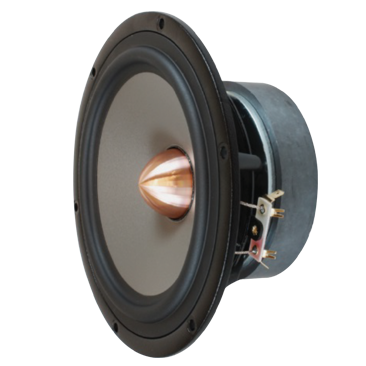

  • 180° FREE REVOLVING DIRECTIONAL WOOFER

    (SEAS W19NX001)(176mm)

    Precision cast, machined and Graphene treated magnesium cone

    FEA optimized magnet system

    A unique radial reinforced rubber radial may reduce radial resonances and prevents surround break up at large excursions

    Titanium voice coil former

    Injection molded metal basket

    Directional Speaker Encloser

    Sensitivity(2.83V,1m) 85.6dB, Recommended Frequency Range: 20~2000Hz

  • SPECIFICATION

Description OCS 600CE 3-Way Full Range Loudspeakers, Two(2) 180°Free Revolving Directional System & One(1) Bass Reflex
Frequency range 20Hz to 25kHz
Nominal impedance(min) 4ohm(10V, 1KHz) 50 – 200W into 8V
Max. recommended cable Impedance 0.1ohm
Dimensions Height : 1220mm / Width : 415mm / Depth : 405mm
Net weight 89Kg(196 lbs) each
Encloser Material Cabinet : 15mm & AL6061 Aluminum, Baffle : 15mm & AL6061 Aluminum
Finishes Non-Gloss Black & Silver
