  • FUNCTION

KMD 700R

01

Super Sound Energy

The purpose of Steel Enclosure exposed for the first time at Seoul Hi-Fi Audio Show in 1999 is to realize zero loss sound energy during transform the electric signal to the audio signal for the audiophile.

KMD is faithful to make Zero Sound Energy Loss when the electric signal is converted into the audio signal.

02

Super Sound Orchestral Arrangement

A large number of recording microphone arrangements at the recording sites covert the audio signal of a sound source of various genres into the electric signal.

KMD desires to express the site where the sound source is occurred by Orchestral Arrangement Technology of Speakers of each range used to convert electrical signalized sound source into the audio signal. (KMD's Patent)

  • KMD 700R-sub-01
  • KMD 700R-sub-02
KMD 700R
KMD 700R

03

Super Sound Fidelity

OCS 500CL was specially designed aimed for multi-channel audio playback.

KMD speakers of each range (low, middle & high) play the sound source as the audio signal, using individual enclosures instead of a tall-boy setup to express the location where the three-dimensional sound source has occurred

  • KMD 700R

04

Super Universal Sound Origin and Angle.

The directional angle of the sound source at the place where the sound source is occurred, can be adjusted.

KMD has a technology in Universal Revolving making 180 degrees on the front side of speakers in case of playing the sound source. It can make the playback controlled in the way of directional angle. (KMD's Patent)

KMD 700R
KMD 700R

  • DRIVE UNITS

  • 110mm

    OCS500CL MINI

    180° Free Revolving Directional Tweeter

    (SEAS T25CF001)

  • 110mm

    OCS1000CG, OCS600CE, OCS500CL

    180° Free Revolving Directional Tweeter

    (SEAS T25CF002, “MILLENNIUM”)

  • 146mm

    OCS500CL MINI

    Directional Woofer

    (SEAS W16NX003)

  • 146mm

    OCS1000CG(Mid-Rrange I), OCS600CE(Mid-Range)

    180° Free Revolving Directional Mid-Range

    (SEAS W16NX001)

  • 176mm

    OCS1000CG(Mid-Rrange II)

    180° Free Revolving Directional Mid-Range

    (SEAS W18EX003)

  • 176mm

    OCS1000CG(Woofer Il), OCS600CE(Woofer), OCS500CL(Woofer)

    Directional Woofer (OCS600CE, OCS500CL)
    180° Free Revolving Directional Woofer (OCS1000CG)

    (SEAS W19NX001)

  • 256mm

    OCS1000CG(Woofer I)

    Directional Woofer

    (SEAS W26FX001)

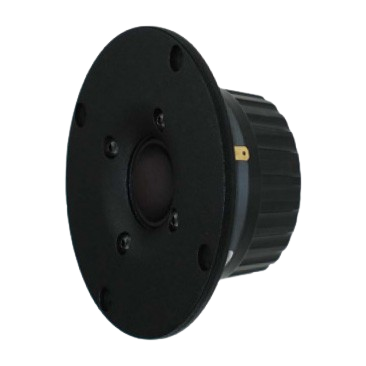

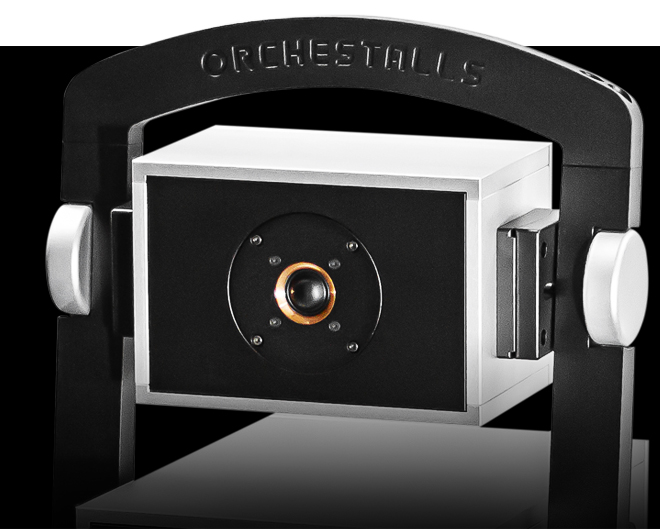

  • OCS500CL MINI

    180° Free Revolving Directional Tweeter

    SEAS T25CF001 / 110mm

    Directional Speaker Encloser Sensitivity (2.83V, 1m) 89dB, Recommended Frequency Range : 2000~25000Hz

  • OCS1000CG, OCS600CE, OCS500CL

    180° Free Revolving Directional Tweeter

    SEAS T25CF002, “MILLENNIUM” / 110mm

    Directional Speaker Encloser Sensitivity (2.83V, 1m) 89dB, Recommended Frequency Range : 2000~25000Hz

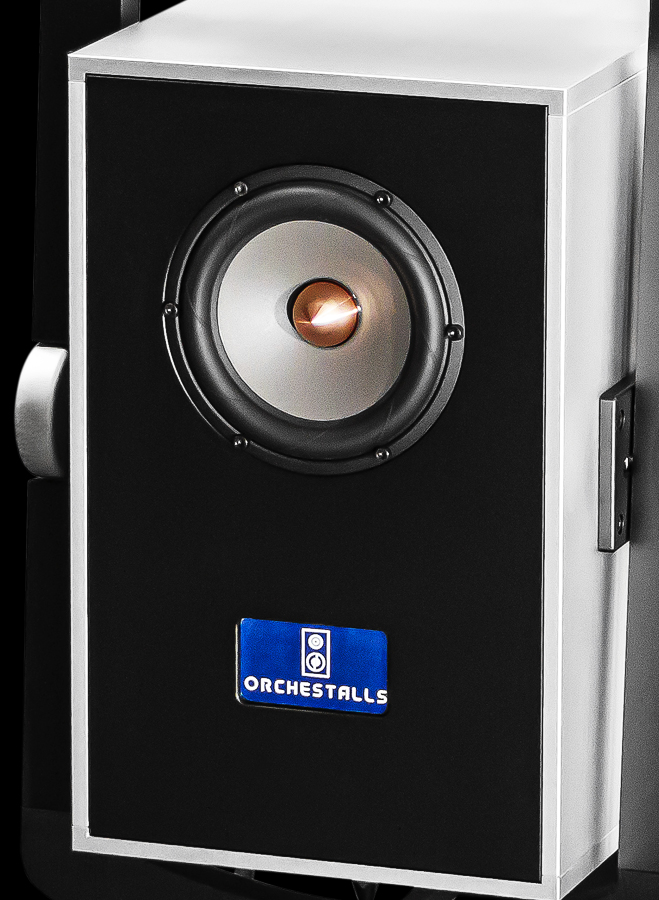

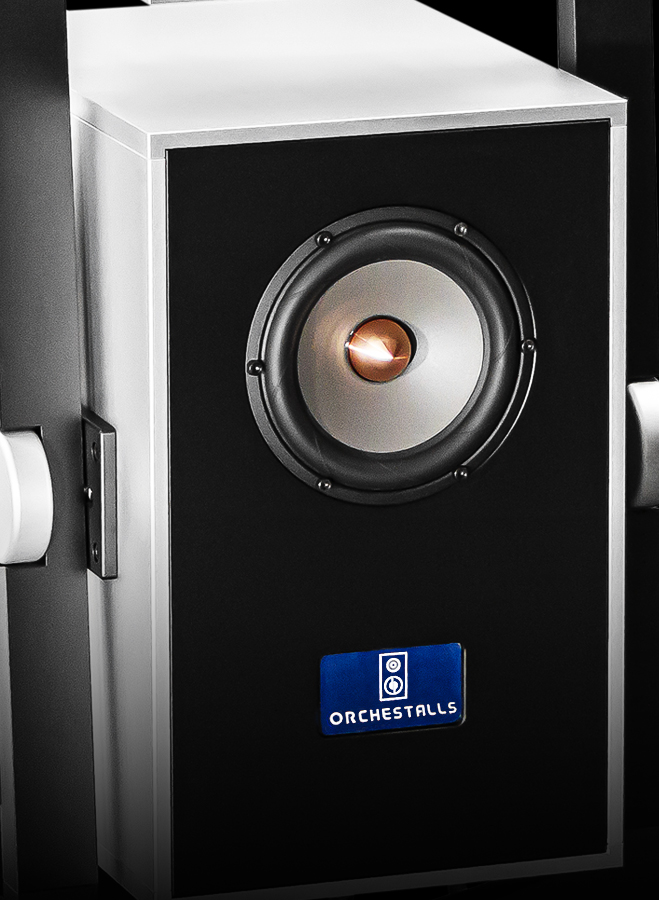

  • OCS500CL MINI

    Directional Woofer

    SEAS W16NX003 / 146mm

    Directional Speaker Encloser Sensitivity (2.83V, 1m) 85dB, Recommended Frequency Range : 20~3000Hz

  • OCS1000CG(Mid-Rrange I), OCS600CE(Mid-Range)

    180° Free Revolving Directional Mid-Range

    SEAS W16NX001 / 146mm

    Directional Speaker Encloser Sensitivity (2.83V, 1m) 85dB, Recommended Frequency Range : 45~2500Hz

  • OCS1000CG(Mid-Rrange II)

    180° Free Revolving Directional Mid-Range

    SEAS W18EX003 / 176mm

    Directional Speaker Encloser Sensitivity (2.83V, 1m) 87dB, Recommended Frequency Range : 40~3000Hz

  • OCS1000CG(Woofer Il), OCS600CE(Woofer), OCS500CL(Woofer)

    Directional Woofer (OCS600CE, OCS500CL)
    180° Free Revolving Directional Woofer (OCS1000CG)

    SEAS W19NX001 / 176mm

    Directional Speaker Encloser Sensitivity(2.83V, 1m) 85.6dB, Recommended Frequency Range: 20~2000Hz

  • OCS1000CG(Woofer I)

    Directional Woofer

    SEAS W26FX001 / 256mm

    Directional Speaker Encloser Sensitivity (2.83V, 1m) 87dB, Recommended Frequency Range : 20~1000Hz

  • SPECIFICATION

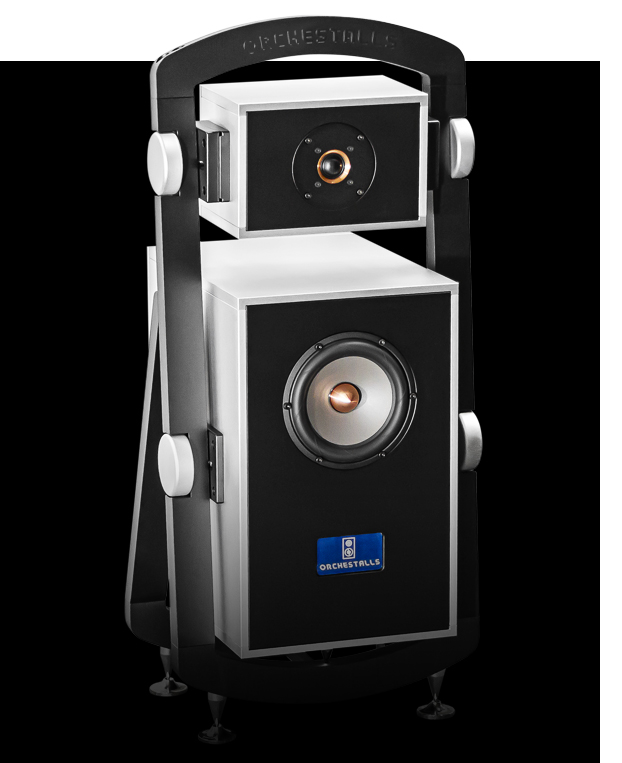

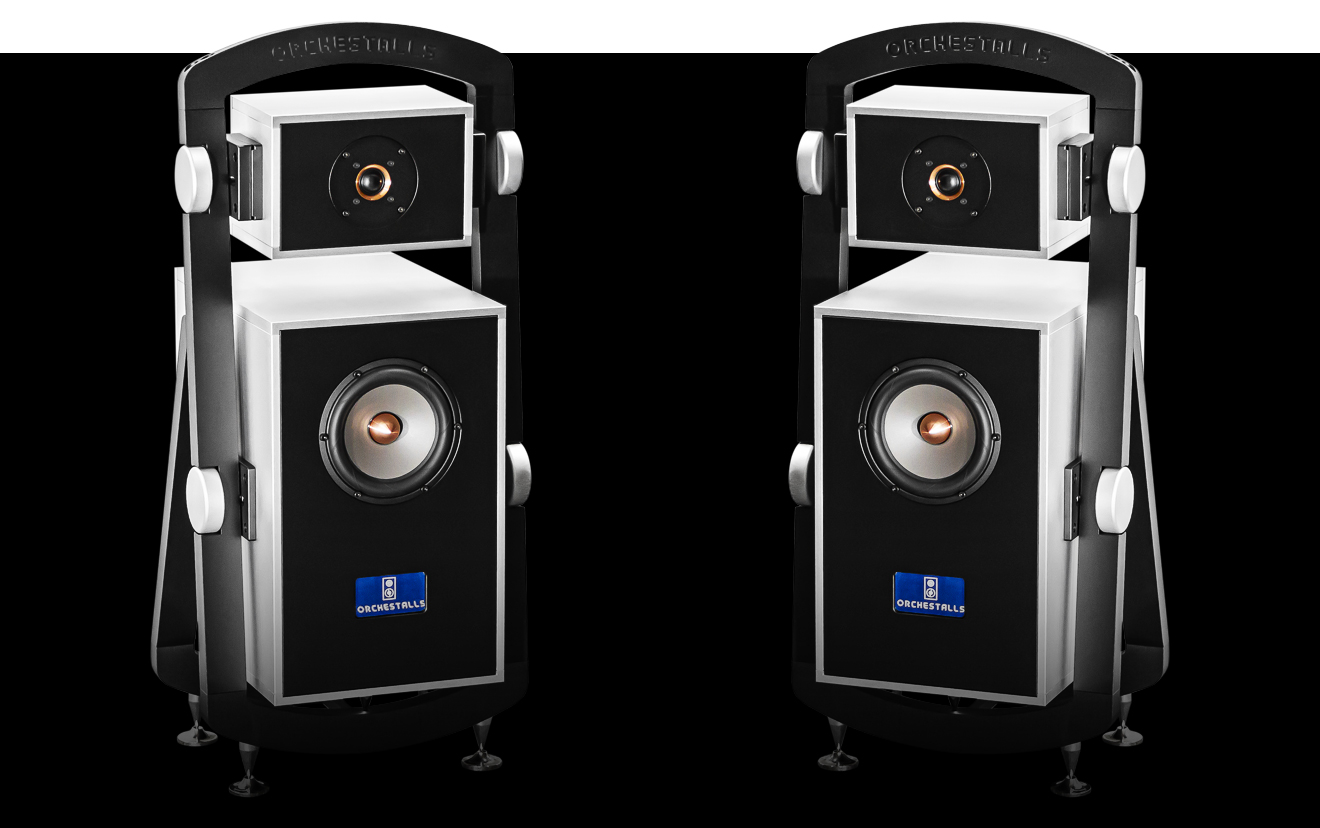

Description OCS 500CL 2-Way Full Range Loudspeakers, One (1) 180° Free Revolving Directional System & One(1) Bass Reflex
Frequency range 20Hz to 25kHz
Nominal impedance(min) 8.0ohm(1.0V, 1KHz)
Recommended amplifier power 20W – 100W into 8V
Max. recommended cable Impedance 0.1ohm
Dimensions Height : 928mm/620mm  / Width : 415mm/310mm / Depth : 405mm/320mm
Net weight 69Kg(152 lbs) each
Encloser Material Cabinet : 15mm & AL6061 Aluminum, Baffle : 15mm & AL6061 Aluminum
Finishes Non-Gloss Black & Silver
