  • FUNCTION

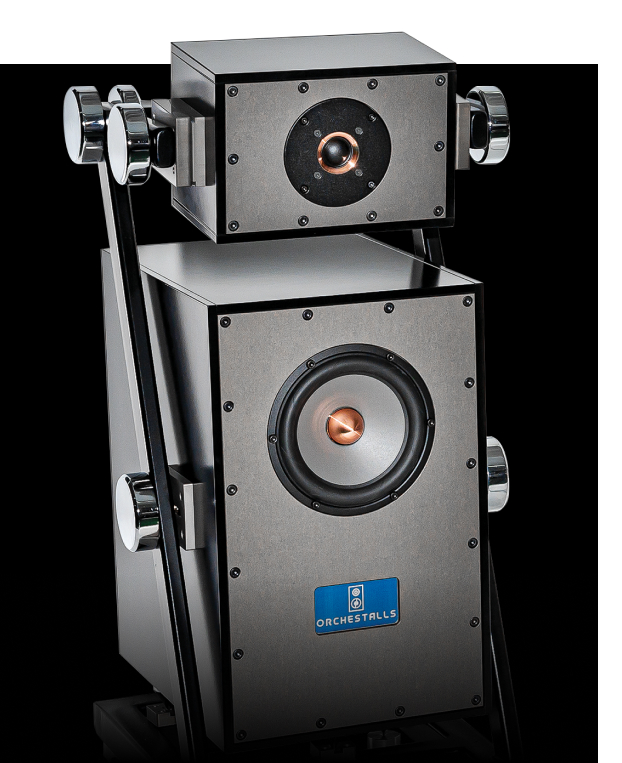

kmd500rt-01

01

Super Sound Energy

The purpose of Steel Enclosure exposed for the first time at Seoul Hi-Fi Audio Show in 1999 is to realize zero loss sound energy during transform the electric signal to the audio signal for the audiophile.

KMD is faithful to make Zero Sound Energy Loss when the electric signal is converted into the audio signal.

02

Super Sound Orchestral Arrangement

A large number of recording microphone arrangements at the recording sites covert the audio signal of a sound source of various genres into the electric signal.

KMD desires to express the site where the sound source is occurred by Orchestral Arrangement Technology of Speakers of each frequency range used to convert the electrical signalized sound source into the audio signal. (KMD's Patent)

  • KMD 500RT
  • KMD 500RT
  • KMD 500RT

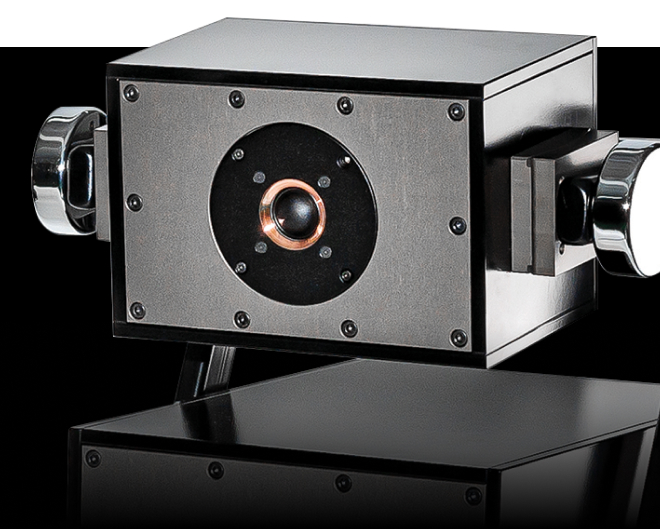

kmd500rt-02

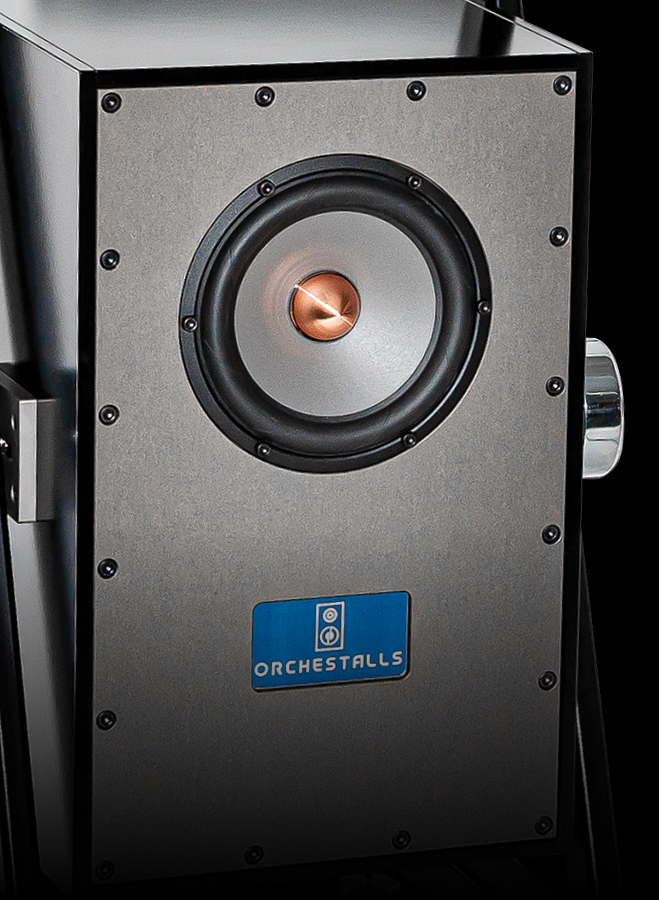

kmd500rt-03

03

Super Sound Fidelity

KMD 500RT was specially designed aimed for multi channel audio playback.

KMD speakers of each range (low, middle & high) used to play the sound source as the audio signal are arranged in the way of not toll-boy but individual arranged enclosers to express the place where the three- dimensional sound source has occurred.

  • KMD 500RT
  • KMD 500RT
  • KMD 500RT

04

Super Universal Sound Origin and Angle

The directional angle of the sound source at the place where the sound source is occurred, can be adjusted.

KMD has a technology in Universal Revolving making 180 degrees on the front side of speakers in case of playing the sound source. It can make the playback controlled in the way of directional angle. (KMD's Patent)

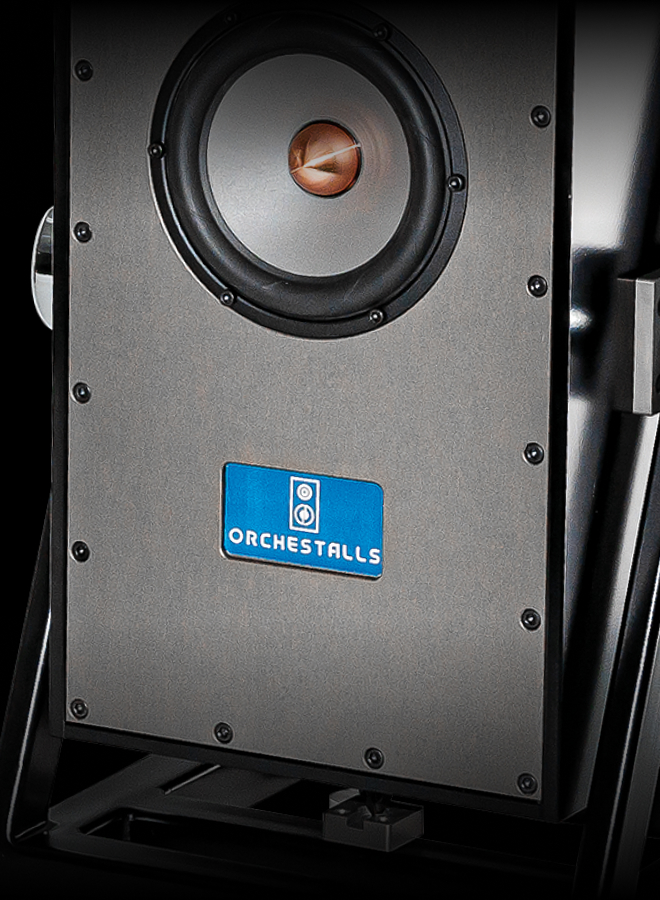

kmd500rt-04

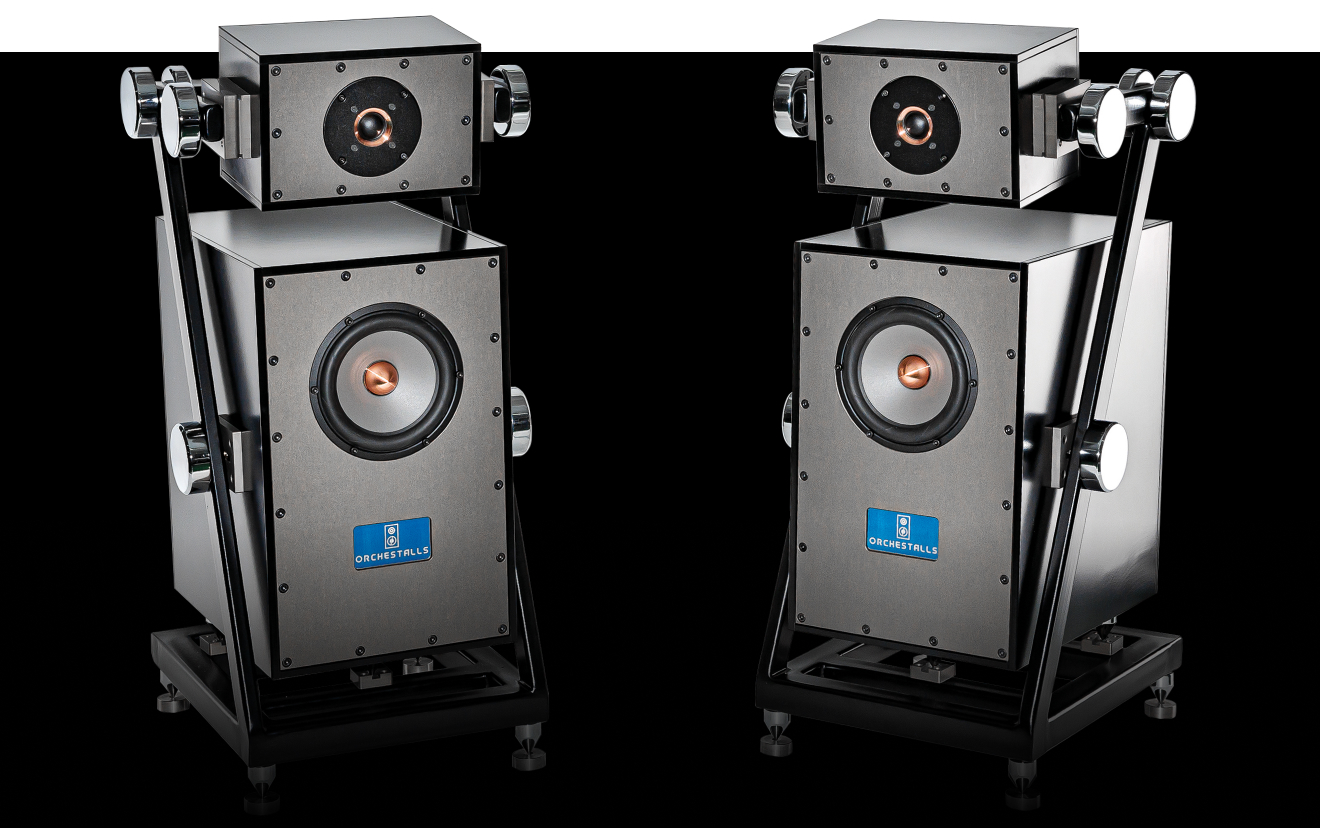

kmd500rt-05

05

Super Mechanical Based Encloser Structure

Designing of Speaker Enclosure

KMD Designs the Enclosure by using the 3-dimensional CAD Modeling Technology, assemblies and simulates virtually in 3-dimensional CAD system, assembles parts accurately produced by CNC Machining Center, CNC Turning Machine, CAM, and other Computer-Aided Manufacturing software.


KMD offers the high-quality original sound without audio energy loss as it is through 180 degrees Free Revolving Directional Enclosure, Cross- Over Circuits developed by KMD and Drivers by SEAS in Norway

  • DRIVE UNITS

  • 25mm

    180° FREE REVOLVING DIRECTIONAL TWEETER

    (SEAS T25CF002, “MILLENNIUM”)

  • 176mm

    DIRECTIONAL WOOFER

    (SEAS W18EX003)

  • 180° FREE REVOLVING DIRECTIONAL TWEETER

    (SEAS T25CF002, “MILLENNIUM”)(25mm)

    25mm soft dome tweeter with a novel Neodymium based magnet system.

    A unique HEXADYM magnet system (U.S Pat 6.020.805) based on 6 radially

    Magnetized NdFeB magnet blocks

    Directional Speaker Encloser

    Sensitivity (2.83V,1m) 89dB, Recommened Frequency Range : 2000~25000Hz

  • DIRECTIONAL WOOFER

    (SEAS W18EX003)(176mm)

    Precision cast, machined and Graphene treated magnesium cone

    FEA optimized magnet system

    A unique radial reinforced rubber radial may reduce radial resonances and prevents surround break up at large excursions

    Titanium voice coil former

    Injection molded metal basket

    Directional Speaker Encloser

    Sensitivity(2.83V,1m) 85.6dB, Recommended Frequency Range: 20~2000Hz

  • SPECIFICATION

Description KMD500RT 2-Way, Two (2) 180° Free Revolving Directional System & One(1) Bass Reflex
Frequency range 20Hz to 25kHz
Nominal impedance(min) 10.2ohm(1.0V, 1KHz)
Recommended amplifier power 20W – 100W into 8V
Max. recommended cable Impedance 0.1ohm
Dimensions Height : 829mm / Width : 395mm/ Depth : 436mm
Net weight 98Kg(216lbs)
Encloser Material Cabinet : SS41 Steel Thickness 10mm & AL6065 Aluminum
Finishes Non-Gloss Black
